Fujifilm Prescale® Film Placed Between a Heat Sink
Download
Fujifilm Prescale® is a unique, affordable and easy to use tool that reveals the distribution and magnitude of pressure between any two contacting surfaces.
Fujifilm Prescale® is a mylar based fi lm that contains a layer of tiny microcapsules. The application of force upon the fi lm causes the microcapsules to rupture, producing an instantaneous and permanent high resolution “topographical” image of pressure variation across the contact area.

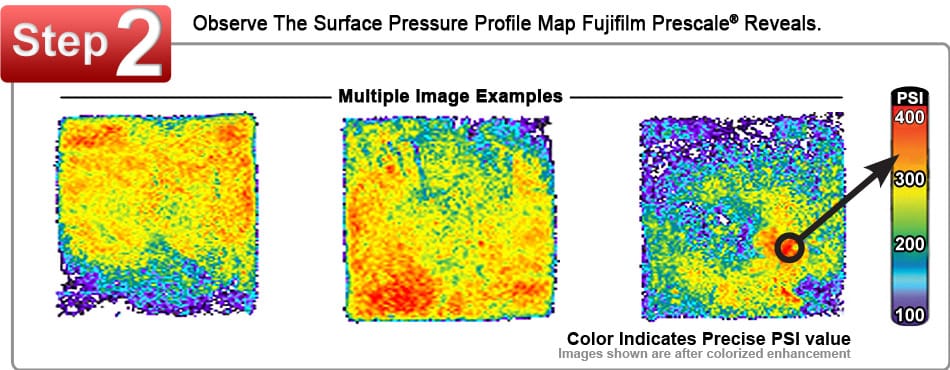

Simply place Fujifilm Prescale®pressure indicating sensor film between any two surfaces that touch, mate or impact. Apply pressure, remove it and immediately the film reveals the pressure distribution profile that occurred between the two surfaces. Conceptually similar to Litmus paper, the color intensity of Fujifilm Prescale® is directly related to the amount of pressure applied to it. The greater the pressure, the more intense the color.
Fujifilm Prescale® is extremely thin (4 to 8 mils) which enables it to conform to curved surfaces. It is ideal for invasive intolerant environments and tight spaces not accessible to conventional electronic transducers.
Have you ever needed to evaluate pressure or force between two touching or mating surfaces? Previously, your only alternatives were strain gauges and load cells, that are both time consuming and difficult to interface. Now with the advent of our disposable one-time use pressure film, Fujifilm Prescale®, evaluating surface contact pressure distribution and magnitude is accurate, quick and highly economical.
| Pressure Film Type | Code | Alternative Code | Pressure Range | Order Now |
| Ultra Extreme Low | 5LW | UXL310 | 0.87 – 7.3 PSI (0.06 – 0.51 kg/cm2) | Order Now |
| Extreme Low | LLLLW / 4LW | XL310 | 7.2 – 28 PSI (0.5 – 2 kg/cm2) | Order Now |
| Ultra Low | LLLW | UL270 | 28 – 85 PSI (2 – 6 kg/cm2) | Order Now |
| Super Low | LLW | SL270 | 70 – 350 PSI (5 – 25 kg/cm2) | Order Now |
| Low | LW | L270 | 350 – 1,400 PSI (25 – 100 kg/cm2) | Order Now |
| Medium | MS | M270 | 1,400 – 7,100 PSI (100 – 500 kg/cm2) | Order Now |
| High | HS | H270 | 7,100 – 18,500 PSI (500 – 1,300 kg/cm2) | Order Now |
| Super High | HHS | SH270 | 18,500 – 43,200 PSI (1,300 – 3,000 kg/cm2) | Order Now |
| Physical Specifications | |
| Operating Temperature | 68°F – 95°F (20°C – 35°C) much higher for brief exposure |
| Humidity Range | 20% to 90% RH |
| Gauge (Thickness) | 4 – 20 mils |
| Spatial Resolution | From 5 – 15 microns |
| Substrate | Polyethylene Terephthalate (PET) |
| Accuracy | ± 10% visual, ± 2% Utilizing optional optical measurement systems |
| Shelf Life | 1 Year |
