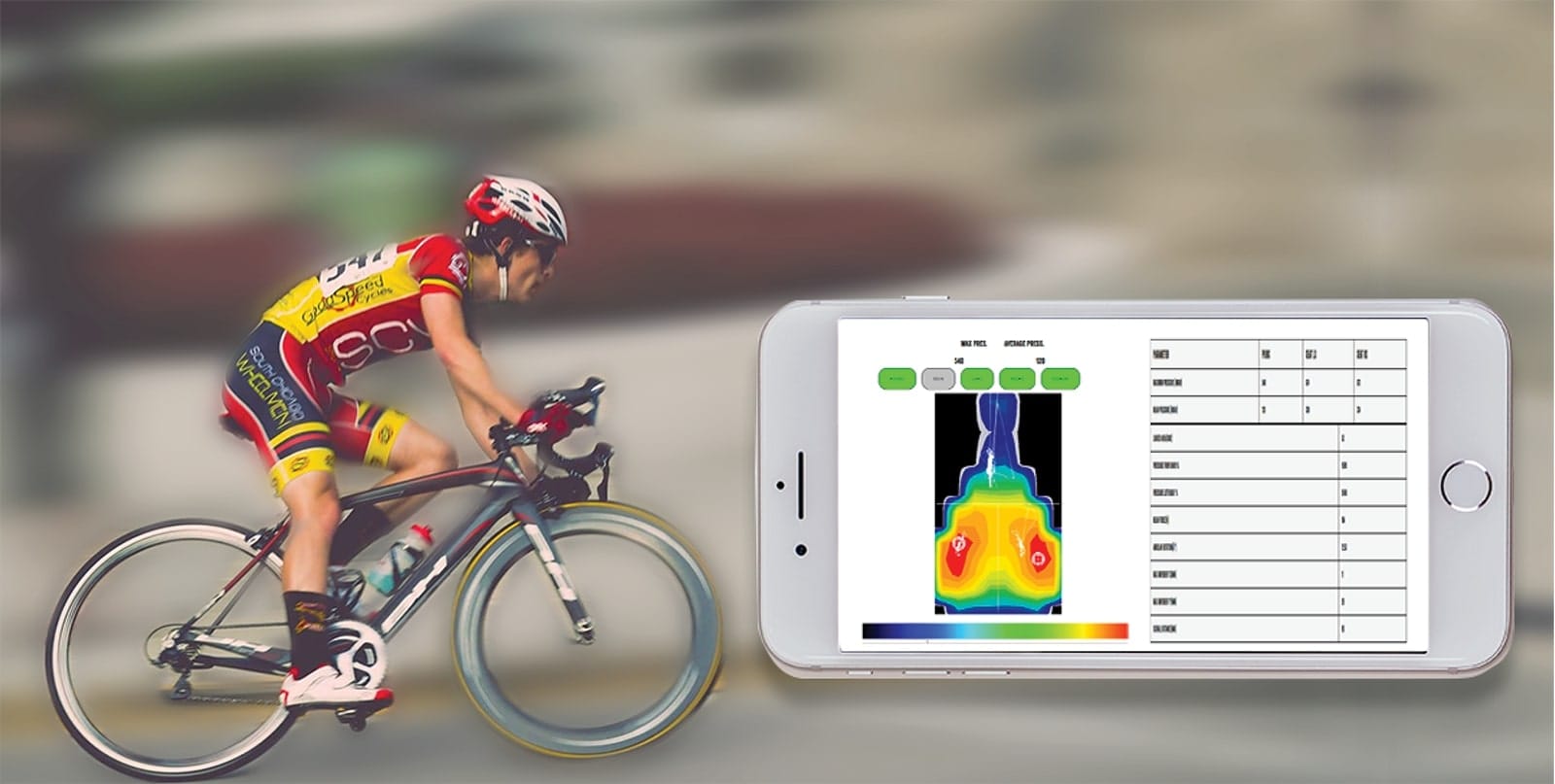

The Tactilus® Bicycle Seat Sensor System evaluates the pressure on the bicycle seat during the pedal cycle (both indoor and outdoor). It’s composed of a Tactilus® Bicycle Seat Sensor with waterproof smart fabric that will send the data to your android or iOS device through bluetooth connection in real time. As well as software, USB cable and data collection hub.
Features
- Easy graphic interface
- Real time data for fast feedback directly on your laptop
- Isobaric Curve
- Ischial Distance
- Rotation Angle
- Body center of gravity (C.O.G.) movement (Left/Right/Front/Main) and shift
of the barycenter - Main COG zoom
- Measurement of the pressure distribution in different seating positions
- Comparison of different tests and bicycle seat types
- Ability to select and analyze an interval/part of the entire test
- No time limit in the execution of the analysis
- Displaying of the results through a color code or 3D pressure map
- Chart and 2D curves
- Integral Pressure – Time
- Percentage of distribution of the loaded areas
- Right/Left/Front Record of the acquired data
- Color printed report (including pressure values and the bicycle seat’s
positioning - Features to analyze asymmetries and phases of loading
| Specifications | |
| Surface Pressure range | 50 – 350 KPa |
| Dimensions | 54 x 22 x 2 cm |
| Matrix Size | 14 x 8 |
| Sensing Points | 68 |
| Sensing point size | 10 x 10 mm |
| Connection type | Bluetooth 4.1 |
| Scan Speed | 25 – 50 Hz |
| Accuracy | ±1 Kpa |
| Power Source | Battery 3.7 V 560mA |
| Battery life | 12 hours |
| Temperature Tolerance | 10 – 45 °C |
| Thickness | 2.5 mm |
