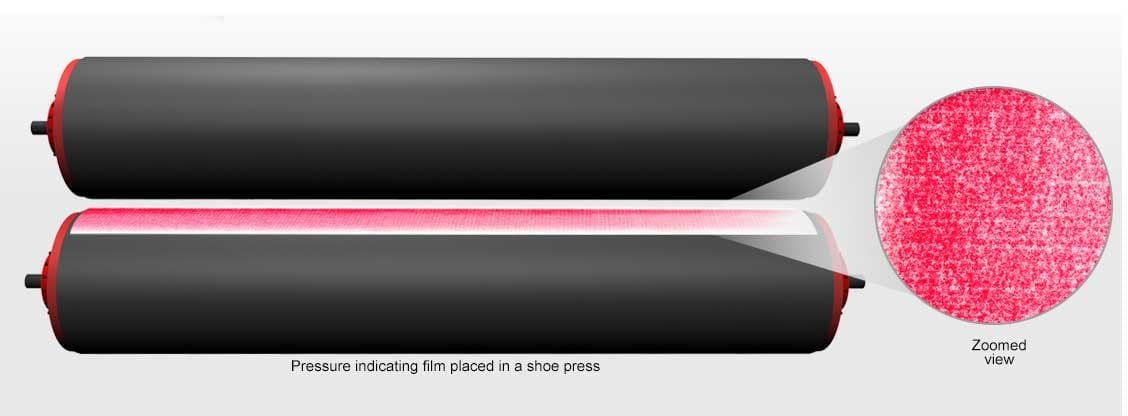

The Shoe Press Profiler® easily allows any technician to quickly and easily capture an extremely high resolution pressure reading of the shoe press. Used on conjunction with pressure indicating films, the Shoe Press Profiler® provides instantaneous and intuitive reports that reveal a wealth of statistical data about your pressure profile. Unlike other pressure systems there is no complicated calibration nor extensive expertise required for replacement of the sensor system.
Benefits
- Extends beltlife
- Ensure a uniform web moisture profile and increased dry content
- Improves runability
- Reduces steam consumption
Shoe Press Profiler® quickly assimilates data from across the entire contact surface area and displays both CD and MD statistics.
| System Specifications | |
| Optical Resolution | 100 DPI |
| Max Imaging Width | 24 in. (61 cm) |
| Weight | 36 lb. (16.3 Kg) |
| Power Consumption | 40 W (4.2 W on Stand By) |
| Interface | USB 2.0 |
| Scan Speed | 6 in. (15 cm) a Second |
| AC Line Voltage | 110 – 220 V |
| Light Source | Dual 2D Extra Long Life LEDs |
| Scan Accuracy | ±0.1%, ±1 pixel |
| Color Space | Normalized / Linearized RAW RGB or sRGB |
| Optics | Solid State Fiber Optic Rod Lens |
| Operating Temperature | 10°C – 35°C, 35% – 85% RH Non-condensing |
The shoe press consists of a specially calibrated scanner unit, cables & software.
