Tired of the Painstaking Manual Nip Impression Measurements?
Sensor Product’s Automated Nip Impression System (Auto-Nis®) brings science to the nip impression measurement process. Auto-Nis® is an optical analysis system that is used in conjunction with Fujifilm Prescale® film as well as standard carbon papers.
Why?
Regular nip impressions ensure proper roller alignment and crowning, significantly reducing machine downtime and improving yield.
How It Works
- Optical analysis instrument reads and interprets nip width and nip pressure data.

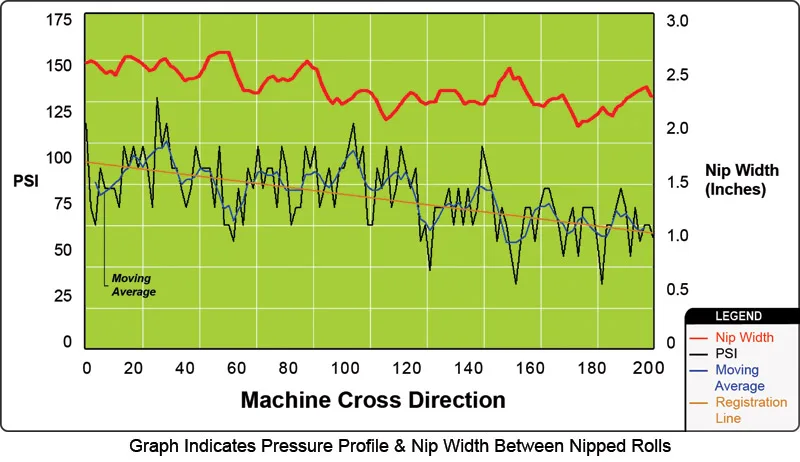

- Data is immediately captured and assimiliated into easy to read graphs on your laptop.
- The scanning unit (DocketScan) connects directly into the USB port on your laptop.
Benefits For You
- Scans and interprets BOTH nip width and nip pressures
- Scans and interprets BOTH Fujifilm Prescale® and conventional carbon paper.
- Scientific exactitude in nip measurements.
- Fast, efficient and accurate results.
- Very small and portable only 16 ounces – fits in your brief case.
- Powerful reports.
“Auto-Nis® – it’s a dynamic testing tool. There are more positives to taking a dynamic nip impression -vs- static. It allows you to take a snap shot of a situation/press very close to actual machine operating parameters.” – Jeff Franko, Metso Paper USA
| Sensor Specifications | |
| Technology | Piezoresistive / Resistive |
| Interface | USB Powered and Compliant |
| Resolution | 75 DPI |
| Scan Frequency | 1/25 inch (1.02 mm) |
| Scan Speed | Approximately 39 in/min (150 cm/min) |
| Dimensions | 296 x 110 x 42mm (L x W x H) |
| Weight | 13.9 oz (335 g) |
| Max Nip Length | 472 inches (12 m) |
| Min Width | 2.7 inches (6.7 cm) |
| Max Width | 8 inches (23 cm) |
| Operating System | Windows 7 and XP Compatible |
