Metal Stamping

Mirco Graenert, of Mirco Graenert Consulting Inc. in Newmarket, Ontario, Canada, and Shawn Eeles, General Manager of Five Star Tooling, a progressive die manufacturer in Ontario, Canada, put Fujifilm Prescale^® through a 400-ton progressive die trial to analyze its capabilities. Initially Graenert conducted a series of tests with the pressure-indicating film by using a 12-ton shop press and some stamping and forming die components. Graenert’s initial test proved that Fujifilm Prescale^® can reveal pressures accurately in die forming and piercing operations. Graenert and Eeles, who have tens of thousands of hours of metal stamping experience, chose a progressive stamping die nearing build completion. Using their hands-on steel stamping experience, they were able to pinpoint important pressure points affecting tool balancing, as well as the key pressure areas affecting die wear.

Although significant effort goes into the design and planning of the balancing event in the stamping tool during the design phase, verifiable data can only be obtained in a press, ideally near completion of the die build phase and first full strip press try out. The die test setup they used is shown in Figure A. The die is a medium size stamping tool which manufactures parts from a coil of steel. It is about 5 feet (aprox. 1.5 meters) in length, manufacturing an arched structural car component using material of about .080″ (2mm) in thickness.

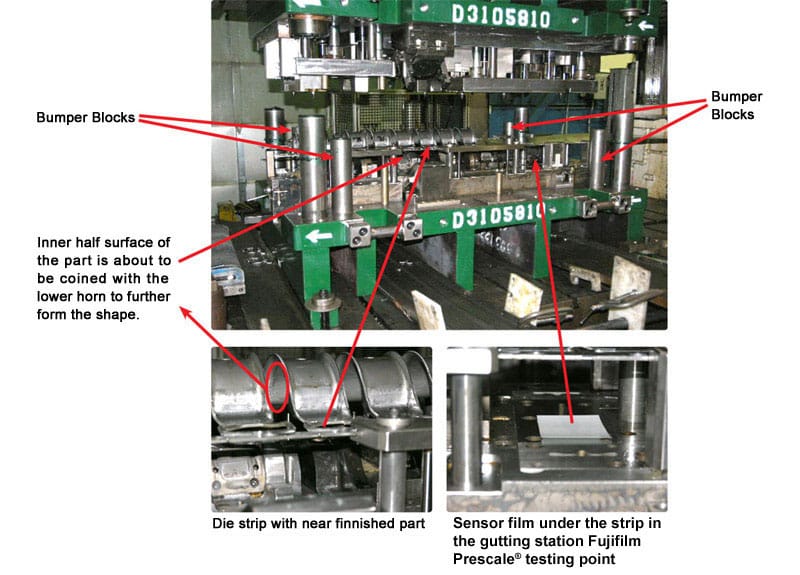

Figure A: The 400T pressure testing setup shows the die components and bumper blocks.

“Stamping tool designers, tool-makers and engineers know that it is vital to balance the overall processes of metal cuts and strikes which are required to shape a part progressively in a die,” says Graenert. “Balancing and obtaining pressure readings from the various operations accurately result in higher quality dies and reduced future die maintenance costs.”

The traditional method – the ages-old die spotting blue technique – reveals the pressure points, without actual pressure readings, making balancing in relation to other die components difficult. Although knowledgeable plant personnel are needed to make the fine adjustments repeatedly on the press for ongoing production, the initial die build and balancing are vital for positive long term results. The re-strike station, particularly on thicker or formed materials, often exerts a concentrated force near the exit side of the die. Unbalanced pressures can cause the die to “kick,” resulting in premature fatigue, excess wear, and subsequent cracking or breakage of die components. Optimal balance throughout the die is achieved by paying close attention to pressure readings from the film and making adjustments in the gutting station area, usually by varying the stripper pressures when balancing infeed to output die ends.

In their testing, Graenert and Eeles used Fujifilm Prescale^® film to also analyze the pressure on and around the cutting edges of a progressive die assembly (shown in Figure B).

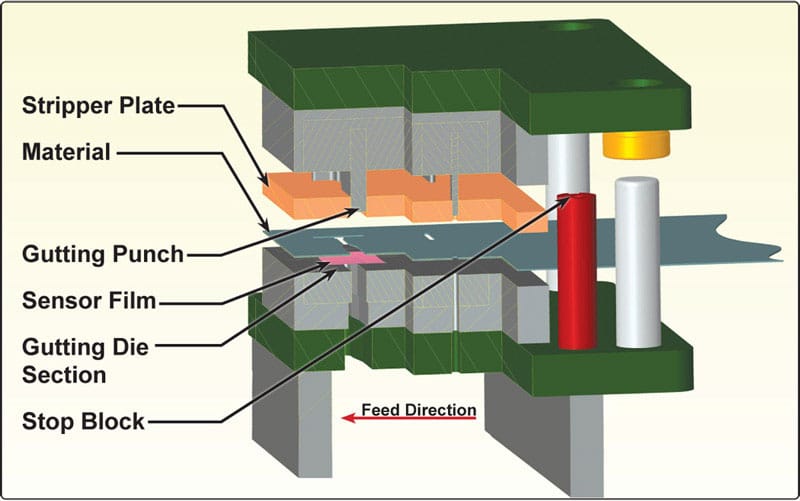

Figure B: Fujifilm Prescale^® is placed in the progressive die between the material strip and the lower gutting section to determine punch and stripper pressures.

As per the above illustration, when the press and upper die gutting punches move down, they contact the material strip shortly after the stripper clamps the material in place. Further downward motion causes the compressive forces to act on the microcapsules of the sensor film just before cutting through the strip and film. This pressure causes the sensor film’s microcapsules to burst, producing an instantaneous and permanent high resolution “topographical” image of pressure variation across the contact area. After one full press stroke, the film is removed and examined.

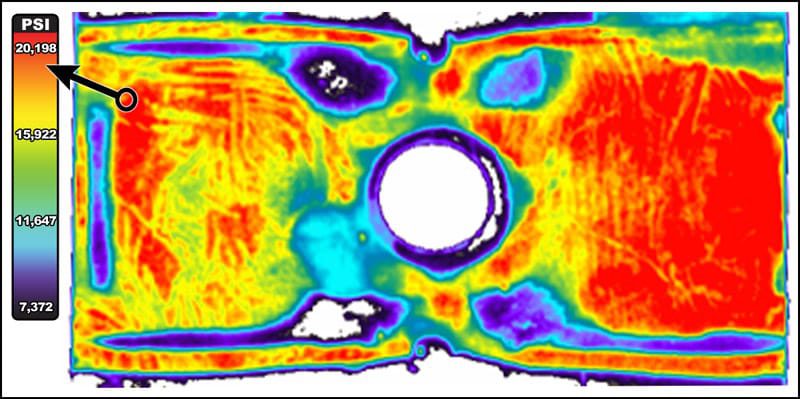

Similar in thickness to ordinary paper, Fujifilm Prescale^® can be quickly placed between many mating forming surfaces and cutting edges. The film changes color directly proportional to the amount of pressure applied and accurately reveals whether pressures are evenly distributed (shown in Figure C). Precise pressure distribution is determined by comparing the exposed sensor film to a color calibration reference chart. High pressure areas near the cutting edges are caused by local material strip deformation.

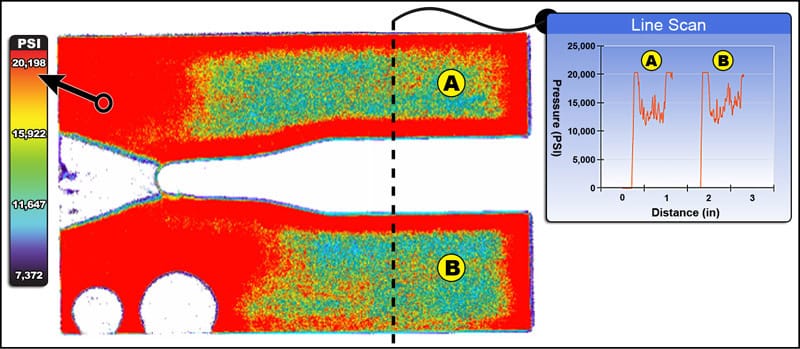

Figure C: Cut through of Fujifilm Prescale sensor film reveals stripping and gutting punch forces. The line scan represents cross-sectional forces.

Fujifilm Prescale^® can be further analyzed using Sensor Product’s in-house imaging service or by leasing or purchasing their Topaq^® Tactile Force Analysis System. All images in this article have been analyzed with Topaq^®.

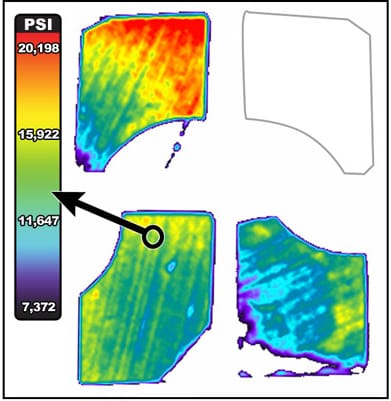

The film showed the areas which were doing most of the work in this die station and provided valuable data during the metal bending “pre-form” die oper
ation as well. Details of their analysis follow.

Note: The general problem with bumper blocks is that the die really should not contact these blocks at all or beyond an established pressure range; however, if conventionally measuring with lead-free round solder, no difference can be found after the zero point of contact has been reached. The pressure indicating sensor film still reads a pressure until the limit has been exceeded.

“The test proved that bumper blocks, areas near cutting edges, gradual forms, trim cutting edges, and re-strike stations can all be thoroughly analyzed giving vital information that enables better die balancing. Even many heavier (> 0.080″ – approx. 2mm) automotive and other stamping and value-added assembly applications are measurable, starting from dies that stamp copper tabs inside a car’s light switch to stamped closure components,” said Graenert.

“SPI’s Fujifilm Prescale^® is simple to use and analyze,” says Eeles. “It is inexpensive and provides significantly more data than other analysis methods.”

“For some dies, these pressure values, particularly combined with die knowledge, reveal what is ‘unseen’ and allow dies and other mechanical systems to be fine-tuned, which reduces their life cycle maintenance cost and improves part quality and consistency,” says Graenert. “We have only explored the tip of the iceberg by using the sensor film in a particular progressive metal stamping tool. There are virtually no limits to what this film can reveal in metal stamping, assembly and related applications.” concludes Graenert.

Fujifilm Prescale^® reveals surface pressure from 2 – 43,200 PSI (0.14 – 3,000 kg/cm2) and is available in eight distinct pressure ranges. The film measures tactile pressure magnitude and distribution in clamps, bolted joints, composites, presses, gaskets, fuel cells, molds, brakes, valves, heat seals, and scores of other industrial applications.
