Fujifilm Prescale® Film Placed Between a Fuel Cell Interface
Fujifilm Prescale® is a unique, affordable and easy to use tool that reveals the distribution and magnitude of surface contact pressure in your fuel cell stack.

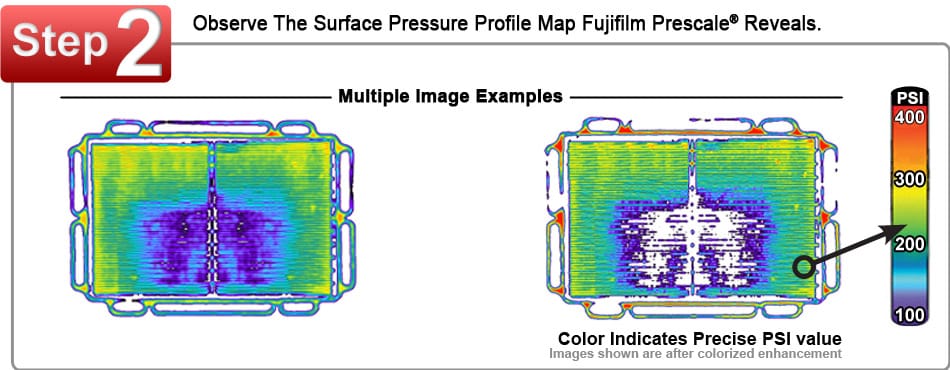

Fujifilm Prescale® sensor film is used to measure surface contact pressure between gasketed diffusion layers. Fujifilm Prescale® reveals both pressure distribution and magnitude between these surfaces in a dramatic surface “map.”
When placed in your fuel cell stack, the film instantaneously and permanently changes color in direct proportion to the actual pressure applied upon it. Philosophically similar to the indication given by Litmus paper. Precise pressure magnitude is then easily determined by comparing the resultant color intensity to a standardized color correlation chart. No training or instrumentation is required.
Have you ever needed to evaluate pressure or force between two touching or mating surfaces? Previously, your only alternatives were strain gauges and load cells, that are both time consuming and difficult to interface. Now with the advent of our disposable one-time use pressure film, Fujifilm Prescale®, evaluating surface contact pressure distribution and magnitude is accurate, quick and highly economical.
Benefits
- Ensure uniform and accurate clamping between membranes
- Physical verification of FEA modeling
- Improve contact resistance
- Optimize the electrochemical reaction area
| Pressure Film Type | Code | Alternative Code | Pressure Range | Order Now |
| Ultra Extreme Low | 5LW | UXL310 | 0.87 – 7.3 PSI (0.06 – 0.51 kg/cm2) | Order Now |
| Extreme Low | LLLLW / 4LW | XL310 | 7.2 – 28 PSI (0.5 – 2 kg/cm2) | Order Now |
| Ultra Low | LLLW | UL270 | 28 – 85 PSI (2 – 6 kg/cm2) | Order Now |
| Super Low | LLW | SL270 | 70 – 350 PSI (5 – 25 kg/cm2) | Order Now |
| Low | LW | L270 | 350 – 1,400 PSI (25 – 100 kg/cm2) | Order Now |
| Medium | MS | M270 | 1,400 – 7,100 PSI (100 – 500 kg/cm2) | Order Now |
| High | HS | H270 | 7,100 – 18,500 PSI (500 – 1,300 kg/cm2) | Order Now |
| Super High | HHS | SH270 | 18,500 – 43,200 PSI (1,300 – 3,000 kg/cm2) | Order Now |
| Physical Specifications | |
| Operating Temperature | 68°F – 95°F (20°C – 35°C) much higher for brief exposure |
| Humidity Range | 20% to 90% RH |
| Gauge (Thickness) | 4 – 20 mils |
| Spatial Resolution | From 5 – 15 microns |
| Substrate | Polyethylene Terephthalate (PET) |
| Accuracy | ± 10% visual, ± 2% Utilizing optional optical measurement systems |
| Shelf Life | 1 Year |
