Fujifilm Prescale® Film Placed on a BGA
Fujifilm Prescale® is a unique, affordable and easy to use tool that reveals coplanarity across your BGA or QFN application.

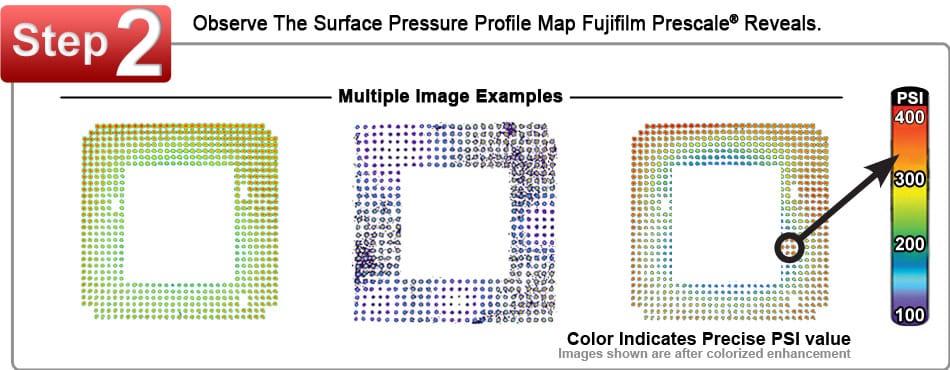

Fujifilm Prescale® sensor film reveals both pressure distribution and magnitude between contacting surfaces in a dramatic surface “map.”
When placed in your interconnect interface, the film instantaneously and permanently changes color in direct proportion with dimensional uniformity and out-of-plane conditions. Detecting missing, damaged, and out-of-position balls is easily determined by comparing the resultant color intensity to a standardized color correlation chart. No training or instrumentation is required.
Have you ever needed to evaluate pressure or force between two touching or mating surfaces? Previously, your only alternatives were strain gauges and load cells, that are both time consuming and difficult to interface. Now with the advent of our disposable one-time use pressure film, Fujifilm Prescale®, evaluating surface contact pressure distribution and magnitude is accurate, quick and highly economical.
Benefits
- Quickly and inexpensively determine ball height uniformity and coplanarity across the contacting surface.
- Indicate warpage directionality (concave or convex) as well as severity of warping, using temperature controlled fixturing.
- Indicate uniformity of spring-loaded plunger-pin forces across the face of BGA sockets on PWB pads.
- Indicate uniformity of contact force distribution in mating surfaces in a wide variety of interconnect / test applications.
| Pressure Film Type | Code | Alternative Code | Pressure Range | Order Now |
| Ultra Extreme Low | 5LW | UXL310 | 0.87 – 7.3 PSI (0.06 – 0.51 kg/cm2) | Order Now |
| Extreme Low | LLLLW / 4LW | XL310 | 7.2 – 28 PSI (0.5 – 2 kg/cm2) | Order Now |
| Ultra Low | LLLW | UL270 | 28 – 85 PSI (2 – 6 kg/cm2) | Order Now |
| Super Low | LLW | SL270 | 70 – 350 PSI (5 – 25 kg/cm2) | Order Now |
| Low | LW | L270 | 350 – 1,400 PSI (25 – 100 kg/cm2) | Order Now |
| Medium | MS | M270 | 1,400 – 7,100 PSI (100 – 500 kg/cm2) | Order Now |
| High | HS | H270 | 7,100 – 18,500 PSI (500 – 1,300 kg/cm2) | Order Now |
| Super High | HHS | SH270 | 18,500 – 43,200 PSI (1,300 – 3,000 kg/cm2) | Order Now |
| Physical Specifications | |
| Operating Temperature | 68°F – 95°F (20°C – 35°C) much higher for brief exposure |
| Humidity Range | 20% to 90% RH |
| Gauge (Thickness) | 4 – 20 mils |
| Spatial Resolution | From 5 – 15 microns |
| Substrate | Polyethylene Terephthalate (PET) |
| Accuracy | ± 10% visual, ± 2% Utilizing optional optical measurement systems |
| Shelf Life | 1 Year |
